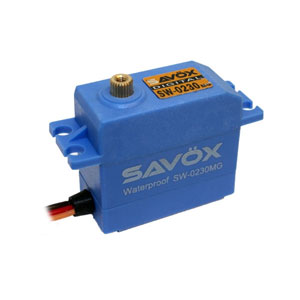

Savox - SW0230MG PLUS
The SW-0230MG Plus is a budget friendly waterproof digital servo capable of operating on high voltage. This is a great upgrade if your looking to drive your RC vehicle in any condition...rain, sleet, or snow.
"Plus" series servos feature Soft Start and Sanwa SSR compatibility.
Features:
- Strong metal gear train for added durability.
- Waterproof case design.
- Capable of HV operation.
- Ideal for cars, truck, and boats subject to water or snow.
- "Plus" series servos feature Soft Start and Sanwa SSR compatibility.
Specifications:
- Torque @ 6V - 6.5kg/90.3oz-in
- Torque @ 7.4V - 8.0kg/111.1oz-in
- Speed @ 6V - 0.16 sec/60 deg
- Speed @ 7.4V - 0.13 sec/60 deg

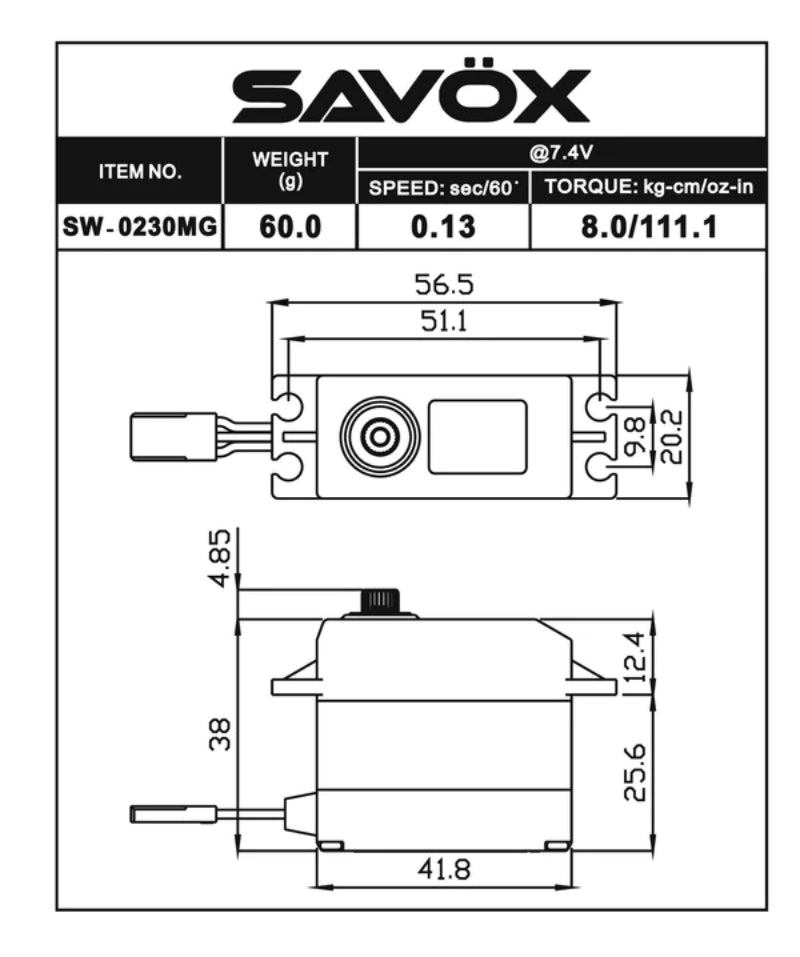

- Dimensions L x W x H (mm): 41.8 x 20.2 x 38.0
- Weight: 60g
Technical Details:
- Operating Temperature: 14° - 122°F (-10° - 50°C)
- Running Current (no load): 100mA @6.0V, 120mA @7.4V
- Stall Current (at locked): 1500mA @6.0V, 1800mA @7.4V
- Idle Current: 5mA @4.8V, 5mA @6.0V
- Wire Length: 200 ± 5mm
- Output Gear Spline: 25 Tooth
- Bearings: 2BB
- Operating Travel: 100° (1000 → 2000 µ second)
- Neutral Position: 1500 µ second
- Pulse Width Range: 800 → 2200 µ second
- Maximum Travel: Appx 130° (900 → 2100 µ second)
- Refresh Rate: 240 Hz
- Motor Type: Brushed
