DualSky - DSE-42285

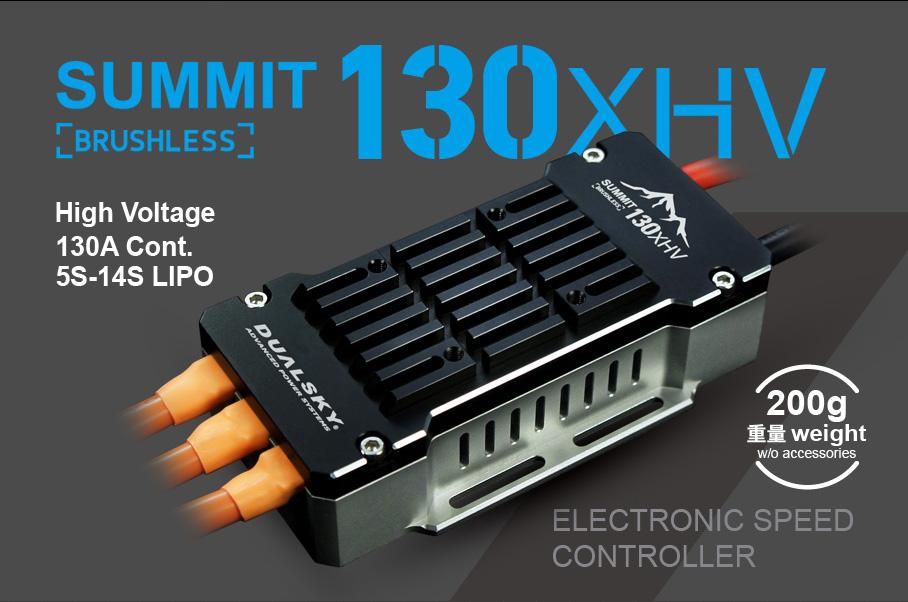

DualSky SUMMIT 130XHV 130Amp 5-14S Brushless Aircraft ESC
DualSky XHV Series ESC = High Voltage Precision Control
The DualSky XHV Series ESC (Electronic Speed Controller) is engineered for high-performance electric aircraft requiring extreme reliability and efficiency. Designed to handle high-voltage power systems, the XHV ESC delivers smooth throttle response, advanced timing control, and excellent thermal management — all essential for precision aerobatics, EDF jets, or large-scale electric models.
Equipped with intelligent firmware and robust components, it ensures stable operation even under demanding conditions. With features like data logging, multiple safety protections, and configurable settings, the XHV series offers unmatched performance and control.
Features
- Designed for 3D airplanes and fixed-wing UAVs.
- New generation 32-bit ARM electric drive system.
- High performance TOLL package MOSFETs for excellent stability.
- Excellent motor drive capability, supporting GA series 28-pole motors.

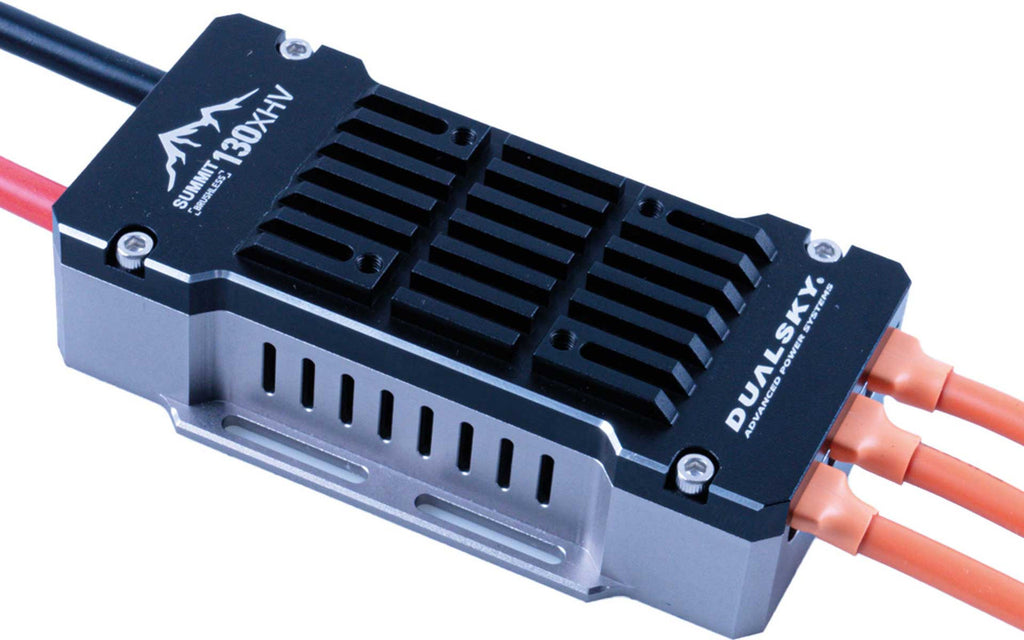

- All metal CNC housing with built-in fan, also designed with an external fan fixed interface.
- Compact design with built-in capacitors.
- Multiple protection measures are implemented, throttle, voltage, current, temperature, and low RPM.
- 100% load test passed.
- Efficient driving core, abundant torque.
- Effectively avoid sync-loss conditions.
- Supports efficient SINE wave working mode.
- Regenerative braking supported.
- Rotational direction can be set. Bidirectional operation is also supported.
- Supports a variety of telemetry protocols (SBus2, EXBus, SRXL2).
- Flight modes can be switched by the Mode button.
- Type-C USB port for firmware updating and programming.
- Supports fixed wing governor mode (in Beta, with subsequent firmware update).
Specs
