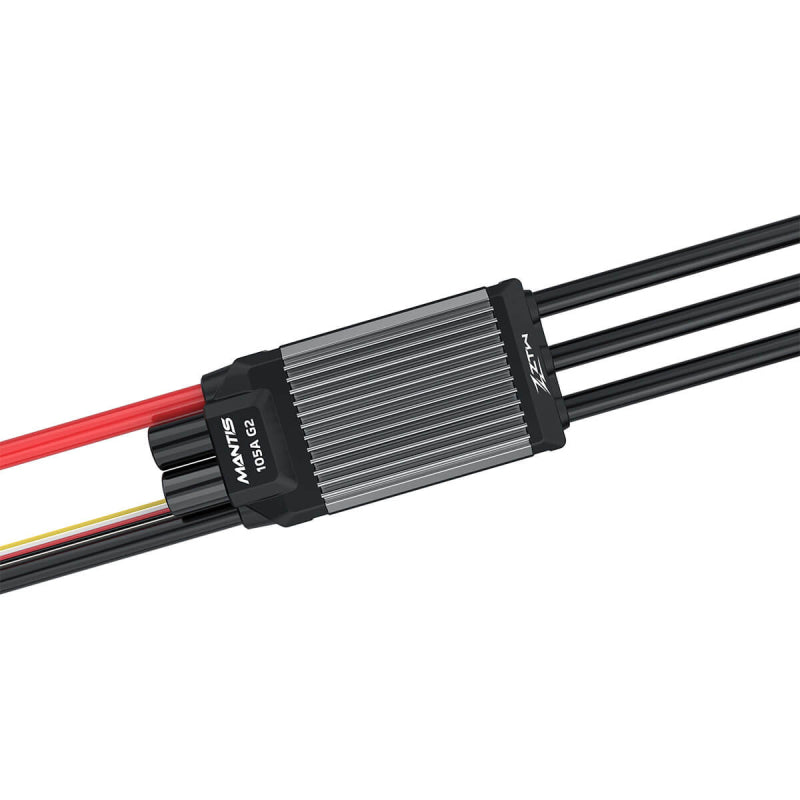

105A 3-8S High Performance Brushless ESC, ZTW Mantis
CAT.608 · DWG ZTW-2105211 SCALE 1:1 PHOTO105A 3-8S High Performance Brushless ESC, ZTW Mantis
FIG. 1
ZTW

105A 3-8S High Performance Brushless ESC, ZTW Mantis

ZTW-2105211
$184.20incl. GST · free NZ shipping

      ZTW - ZTW-2105211 ZTW Mantis G2 105A ESC 3-8S (8A SBEC)   The ZTW Mantis series is designed as a performance upgrade for your stock/OEM ESC. Its performance, feature set, and stability make it the perfect enhancement for your RC electric airplane or helicopter. It features compact size, lightweight, simplified...

1
Click & collect →
In stock — 1 on the shelf in Christchurch
1–2 working day dispatch · tracked courier NZ-wide
Checked & test-run by Shane before it ships · 30-day returns







ZTW - ZTW-2105211

ZTW Mantis G2 105A ESC 3-8S (8A SBEC)



The ZTW Mantis series is designed as a performance upgrade for your stock/OEM ESC. Its performance, feature set, and stability make it the perfect enhancement for your RC electric airplane or helicopter. It features compact size, lightweight, simplified PCB design, super-smooth start-up and throttle linearity, multiple circuit protections, governor, high amp BEC output and more. If you want to boost the performance of your stock ESC, the ZTW Mantis is an ideal choice offering a long list of advanced features and solid, reliable construction.



ZTW Programming card is also available. Click here to find out more.



Features

  • Supports high RPM motors and can be used with most RC motors
  • Fully programmable via the ZTW G2 programming card
  • Saves energy through greater efficiency
  • Super smooth and accurate throttle linearity
  • Power arming protection (prevents the motor from accidentally running when switched ON)
  • Auto throttle shut down in a signal loss situation
  • Safety thermal over-load protection
  • Uses the new generation of the MOSFET to ensure the ESC stays within operating temperatures and can support peak current draws
  • High performance 32-bit microprocessor


Specifications

  • Continuous Current: 105A
  • Burst Current: 115A
  • Strong BEC Output: 6.0V/7.4V/8.4V 8A
  • Battery: 3-8S Lipo
  • Size: 88mm x 38mm x 25mm
  • Weight: 109g
  • Programming way: transmitter/LCD program card G2/IOS & Androïd app


Includes

  • ZTW Mantis G2 105A ESC with 8A SBEC
  • Instruction manual
  • Note: this ESC is delivered without battery and motor plugs, but does include the receiver plug.
