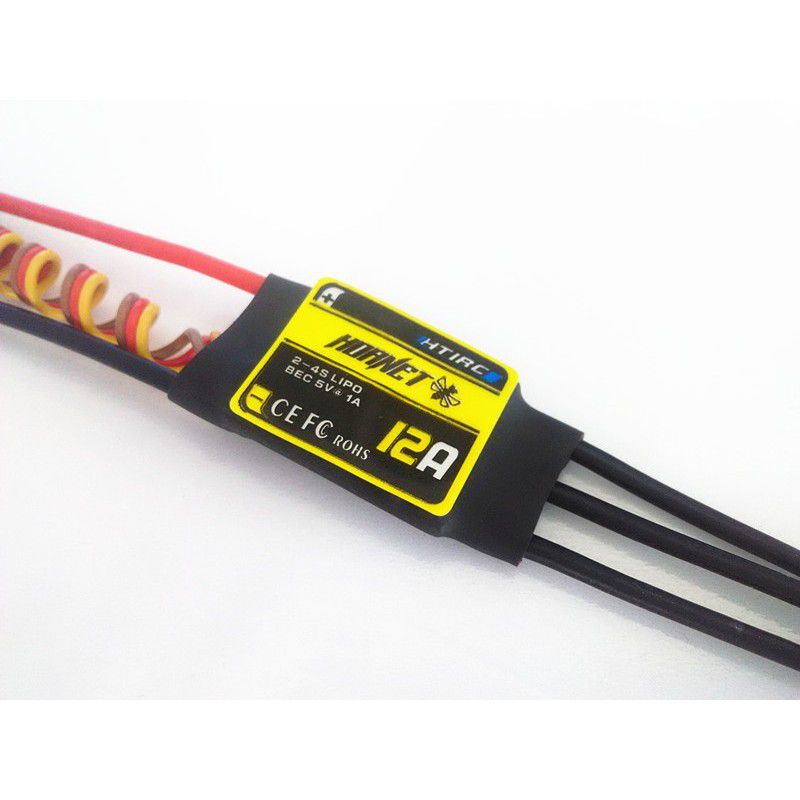

HTIRC Hornet 12A Aircraft / Heli ESC. No battery or motor plugs fitted
Description:
Output: Continuous 12A
Burst: 15A
Battery: 2-4S Li-Po / 5-12 Ni-MH
BEC Output: 5V/1A
Size: 24x16x6.5mm
Weight: 11g
Features:
- Utilize powerful and high-performance MCU processor. The users can set using function according to their requirements, which fully reflects the smart feature of our products as a unique advantage.
- Support unlimited rotate speed of brushless motor.
- Elaborately designed circuit with strong anti-interference.
- The starting mode can be set. The throttle response speed is very fast and the linear speed regulation is very stable. It can be used in fixed-wing aircraft and helicopter.
- Internally installed SBEC/UBEC, the operating power to start servos is strong.
- Multi protection functions: abnormal input voltage protection; battery low-voltage protection; over-heat protection; throttle signals loss protection.
- Good power-on safety performance: the motor will not start immediately no matter the throttle stick is in any position when power on.
- Over-heat protection: the output power will auto-power reduce when the temperature reaches 120℃ during the operation of ESC. The output power will automatic recover when the temperature under 120℃.
- Compatible with all transmitters control settings; support programming settings.
- The smallest size and minimum weight under the same current specifications.
- High performance with competitive price.
