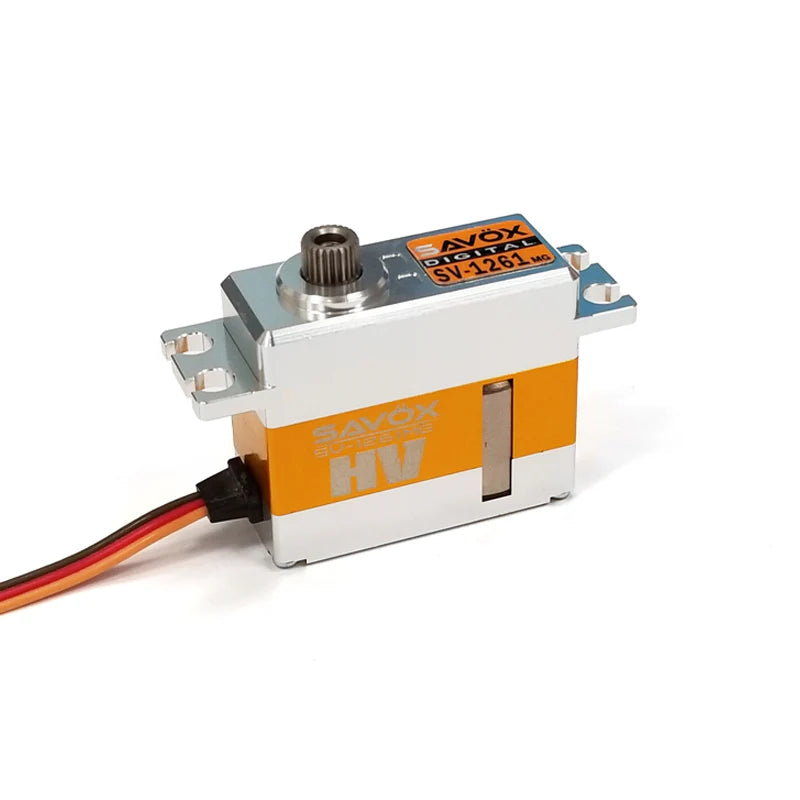

20kg @ 7.4V HV Metal Gear Mini Digital Servo, Savox SV-1261MG
CAT.304 · DWG SV1261MG SCALE 1:1 PHOTO20kg @ 7.4V HV Metal Gear Mini Digital Servo, Savox SV-1261MG
FIG. 1
Savox

20kg @ 7.4V HV Metal Gear Mini Digital Servo, Savox SV-1261MG

SV1261MG
$156.90incl. GST · free NZ shipping

Savox - SV1261MG The SV-1261MG takes the performance of the SV1260MG and utilizing the same size case, increased the torque to a whopping 277oz/in while maintaining an impressive 0.095 second transit time. Primarily intended for air applications, this powerhouse can also be used in specialty cars, trucks, and boats...

1
Click & collect →
In stock — 6 on the shelf in Christchurch
1–2 working day dispatch · tracked courier NZ-wide
Checked & test-run by Shane before it ships · 30-day returns

Savox - SV1261MG

The SV-1261MG takes the performance of the SV1260MG and utilizing the same size case, increased the torque to a whopping 277oz/in while maintaining an impressive 0.095 second transit time. Primarily intended for air applications, this powerhouse can also be used in specialty cars, trucks, and boats and is intended to be used on direct 7.4V LiPo current.

Features:

  • Metal gear train provide durability against heavy use
  • Capable of HV operation
  • All aluminum case provides strength and cooler operating temperatures



Specifications:

  • Torque @ 7.4v: 20.0kg/277oz./in
  • Torque @ 6.0v: 15.0kg/208oz./in
  • Speed @ 7.4v: 0.095 sec/60 deg
  • Speed @ 6.0v: 0.12 sec/60 deg
  • Dimensions L x W x H (mm): 35 x 15 x 30.7
  • Weight: 40.0g / 1.4 oz



Technical Details:

  • Operating Temperature: 14° - 122°F (-10° - 50°C)
  • Running Current (no load): 120mA @6.0V, 180mA @7.4V
  • Stall Current (at locked): 4000mA @6.0 V, 4700mA @7.4V
  • Idle Current: 5mA @6.0V, 5mA @7.4V
  • Wire Length: 250 ± 5mm
  • Output Gear Spline: 25 Tooth
  • Bearings: 2BB
  • Operating Travel: 100° (1000 → 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 800 → 2200 µ second
  • Maximum Travel: Appx 165° (800 → 2200 µ second)
  • Refresh Rate: 333 Hz
  • Motor Type: Coreless
✓ Included
  • ·See product description for included items.
+ Required to complete
    Shane keeps the right packs and receivers on the shelf — ask if you're unsure.

    Assembly notes coming soon — ask Shane if you need a hand before your first flight.

    Dispatch — Orders dispatch within 1–2 working days. Tracked courier NZ-wide; delivery typically 1–3 working days depending on location. Rural delivery adds a day.

    Cost — Free over $150. Flat $9.50 under. Oversized airframes may carry a freight surcharge — shown at checkout.

    Click & collect — Free pickup from 9 North Avon Road, Christchurch. After-hours by appointment — text ahead.

    Returns — 30-day returns on unflown, as-new items. Crash damage isn't covered, but Shane stocks the spares to put it right.
