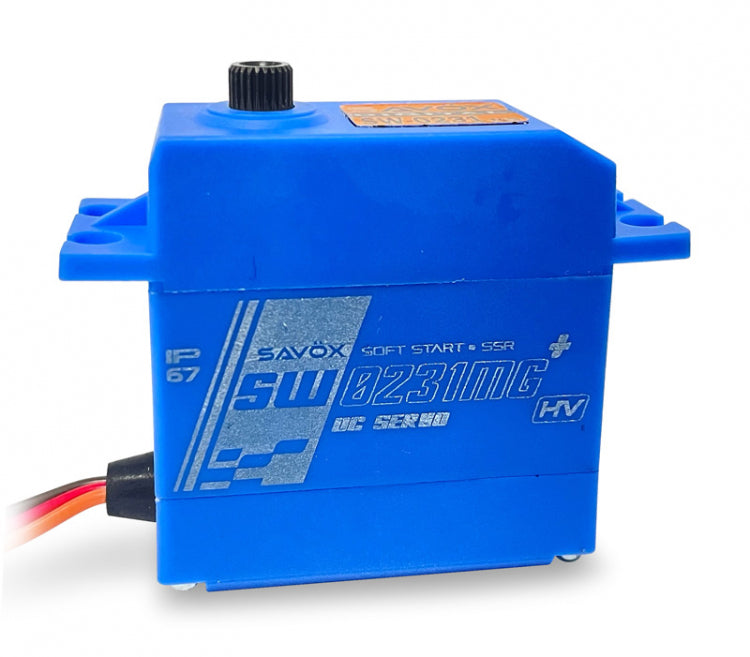

25kg @ 7.4V STD Size Waterproof Servo, Savox SW-0231MG PLUS

  • Sale
  • Regular price $69.90
Tax included.









Savox - SW0231MG PLUS

The SW-0231MG is a budget friendly, waterproof, high torque, digital servo in a slightly taller case than most standard sizes. This is a great upgrade if your looking to drive your RC vehicle in any condition yet unable to use higher voltage to obtain more power.

"Plus" series servos feature Soft Start and Sanwa SSR compatibility.



Features:

  • Strong metal gear train for added durability.
  • Waterproof case design.
  • Ideal for cars, truck, and boats subject to water or snow.
  • Slightly taller case design.



Specifications:

  • Torque @ 6V -15kg-cm/208.3oz-in
  • Torque @ 7.4V - 25kg-cm/347.2oz-in
  • Speed @ 6V - 0.17 sec/60 deg
  • Speed @ 7.4V - 0.15 sec/60 deg
  • Dimensions L x W x H (mm): 41.8 x 20.2 x 42.9
  • Weight: 66g



Technical Details:

  • Operating Temperature: 14° - 122°F (-10° - 50°C)
  • Running Current (no load): 100mA @4.8V, 120mA @6.0V
  • Stall Current (at locked): 3800mA @4.8V, 4800mA @6.0V
  • Idle Current: 5mA @4.8V, 5mA @6.0V
  • Wire Length: 200 ± 5mm
  • Output Gear Spline: 25 Tooth
  • Bearings: 2BB
  • Operating Travel: 100° (1000 → 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 800 → 2200 µ second
  • Maximum Travel: Appx 130° (900 → 2100 µ second)
  • Refresh Rate: 240 Hz
  • Motor Type: Brushed
