ZTW - ZTW-3030211

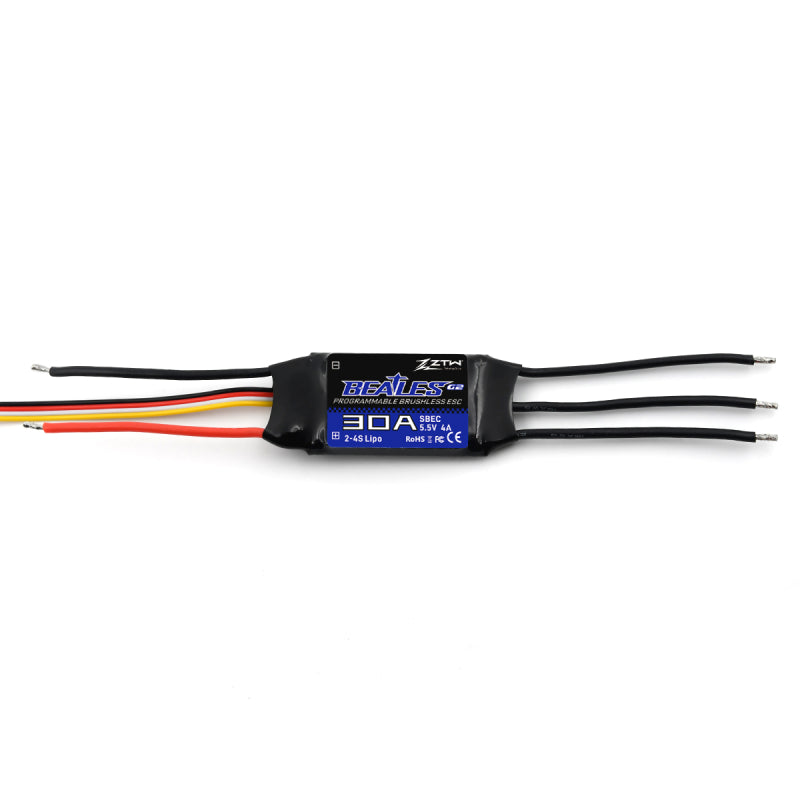

ZTW Beatles G2 30A ESC 2-4S (4A SBEC)
ZTW Beatles series ESC is a beginning level product line for fixed wing. This line product is specially designed for the beginner who is sensitive to price and performance. Also it is ready to use right out of box, every default is set for the best convenience of the customer, no programming needed.
If you like to program for a change you can use our G2 air program card (sold separately). It features light weight, small size, super smooth start up and throttle linearity, multiple protection, low cost and best performance at this level of product.
ZTW Programming card is also available. Click here to find out more.
Features:
- Extremely low internal resistance
- Super smooth and accurate throttle linearity
- Safety thermal over-load protection
- Auto throttle shut down in signal lose situation
- Supports high RPM motors
- Power arming protection (prevents the motor from accidentally running when switched ON)
- New Advanced programming software
-
G2 Version:
- stronger BEC, all of them used switch BEC
- used 32 bit MCU
- the temperature increased slower, longer flight time supported
- requires the LCD program card G2, but it supports the transmitter programming also
Specifications:
- Dimensions: 60x25x10mm
- Weight: 28g
- Output: Continuous 30A
- Burst: 40A (10 sec.)
- Battery: 2-4S lipo / 5-12 NC
- BEC Output: 5.5V @ 4A (Switch Mode)
Includes
- ZTW Beatles G2 30A ESC with 4A SBEC
- Instruction manual
- Note: this ESC is delivered without battery and motor plugs, but does include the receiver plug.
