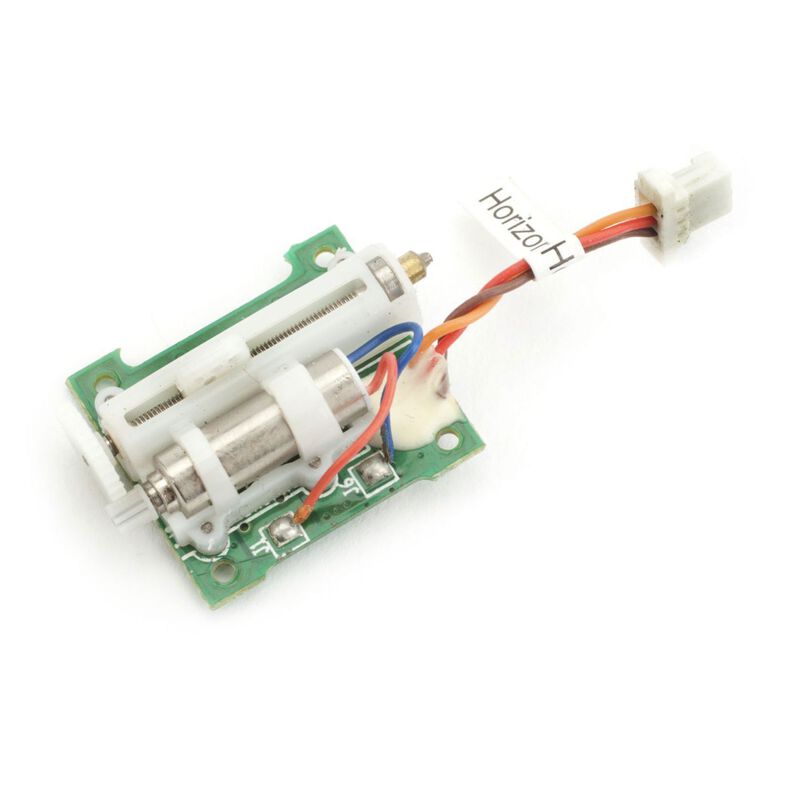

H2025L Analog 2.0g Performance Linear Long Throw Heli Servo
CAT.112 · DWG SPMSH2025L SCALE 1:1 PHOTOH2025L Analog 2.0g Performance Linear Long Throw Heli Servo
FIG. 1
Spektrum

H2025L Analog 2.0g Performance Linear Long Throw Heli Servo

SPMSH2025L
$28.80incl. GST · free NZ shipping

    Spektrum - SPMSH2025L Replacement Servo for the Blade Nano MCPX   Features Performance Micro servo for use with AS3X receivers 9.1 mm servo throw Compact footprint JST-SHR Connector Single Bearing for friction free operation   Product Specifications Connector Type JST-SHR 1.0 mm Product Length 0.87" ...

1
Click & collect →
Out of stock — ask Shane to restock
1–2 working day dispatch · tracked courier NZ-wide
Checked & test-run by Shane before it ships · 30-day returns





Spektrum - SPMSH2025L

Replacement Servo for the Blade Nano MCPX



Features

  • Performance Micro servo for use with AS3X receivers
  • 9.1 mm servo throw
  • Compact footprint
  • JST-SHR Connector
  • Single Bearing for friction free operation



Product Specifications

Connector Type JST-SHR 1.0 mm
Product Length 0.87" (22mm)
Connector Wire Length 15mm
Product Width 0.66" (16.9mm)
Bearing Single
Bushing Or Bearing Bearing
Max Servo Torque Less than 20 oz-in
Product Weight 0.07 oz (2.00 g)
Servo Operating Voltage 3.2 - 4.2V
Product Height 0.33" (8.20mm)
Servo Type Analog
Maximum Servo Torque 3.5 oz (100 g ) @ 4.2V
Gear Type Nylon
Maximum Servo Speed 0.100-0.149 sec
Servo Size Category Nano
