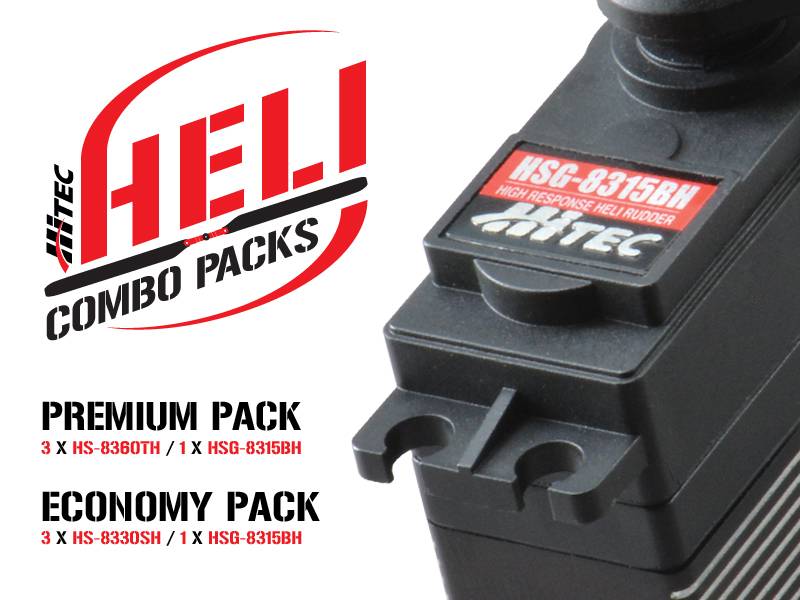

Heli Combo Pack - Premium Pack, Hitec
CAT.480 · DWG 34010 SCALE 1:1 PHOTOHeli Combo Pack - Premium Pack, Hitec
FIG. 1
Hitec

Heli Combo Pack - Premium Pack, Hitec

34010
$660.40$825.50incl. GST · free NZ shipping

  ONLY 2 SETS AVAILABLE AT THIS CLEARNCE PRICE   Hitec - 34010 When it comes to arming your RC helicopter with the very best in servo technology, depend on Hitec. Hitec have combined their high resolution, high response helicopter servos in convenient packages to ensure you are equipped with what you need to get o...

1
Click & collect →
In stock — 2 on the shelf in Christchurch
1–2 working day dispatch · tracked courier NZ-wide
Checked & test-run by Shane before it ships · 30-day returns



ONLY 2 SETS AVAILABLE AT THIS CLEARNCE PRICE



Hitec - 34010

When it comes to arming your RC helicopter with the very best in servo technology, depend on Hitec.

Hitec have combined their high resolution, high response helicopter servos in convenient packages to ensure you are equipped with what you need to get off the ground fast!

This is the professional, ultra-response PREMIUM PACK with three powerful, titanium gear HS-8360TH servos as well as the quick HSG-8315BH gyro servo.

Pick your pack and throttle up!


Heli Combo Pack Servo Specifications

Performance Specifications HS-8315BH HS-8330SH HS-8360TH
Operating Voltage Range (Volts DC) 6.0V ~ 7.4V 6.0V ~ 7.4V 6.0V ~ 7.4V
Speed (Second @ 60°) 0.05 ~ 0.04 0.09 ~ 0.07 0.08 ~ 0.07
Maximum Torque Range oz. / in. 60 ~ 74 139 ~ 181 187 ~ 229
Maximum Torque Range kg. / cm. 4.3 ~ 5.3 10.0 ~ 13.0 13.5 ~ 16.5
Current Draw at Idle 10 mA 10 mA 10 mA
No Load Operating Current Draw 300 mA 500 mA 390 mA
Stall Current Draw 3,150 mA 5,200 mA 4,800 mA
Dead Band Width < 1 µs < 1 µs < 1 µs
Physical Specifications HS-8315BH HS-8330SH HS-8360TH
Dimensions (Inches) 1.57 x 0.79 x 1.50 1.57 x 0.78 x 1.46 1.57 x 0.79 x 1.50
Dimensions (Metric) 40.0 x 20.0 x 38.0 40.0 x 20.0 x 37.0 40.0 x 20.0 x 38.0
Weight (Ounces) 2.12 2.33 2.4
Weight (Gram) 60.0 66.0 68.0
Circuit Type HR Digital HR Digital HR Digital
Motor Type Coreless Metal Brush Coreless Metal Brush Coreless Metal Brush
Gear Material Karbonite Steel Titanium
Bearing Type Dual Ball Bearing Dual Ball Bearing Dual Ball Bearing
Output Shaft (type / Ømm) H25T H25T H25T
Case Material Plastic / Aluminum Plastic / Aluminum Plastic / Aluminum
Dust / Water Resistance Splash Proof Splash Proof Splash Proof
Connector Gauge (AWG) / Strand Count 22 / 80 20 / 80 20 / 80



✓ Included
  • ·See product description for included items.
+ Required to complete
    Shane keeps the right packs and receivers on the shelf — ask if you're unsure.

    Assembly notes coming soon — ask Shane if you need a hand before your first flight.

    Dispatch — Orders dispatch within 1–2 working days. Tracked courier NZ-wide; delivery typically 1–3 working days depending on location. Rural delivery adds a day.

    Cost — Free over $150. Flat $9.50 under. Oversized airframes may carry a freight surcharge — shown at checkout.

    Click & collect — Free pickup from 9 North Avon Road, Christchurch. After-hours by appointment — text ahead.

    Returns — 30-day returns on unflown, as-new items. Crash damage isn't covered, but Shane stocks the spares to put it right.
