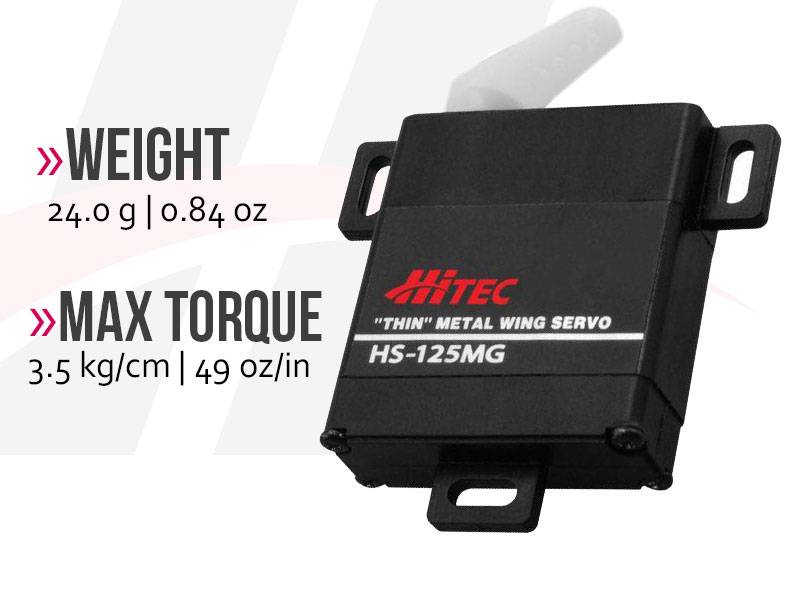

Hitec - HS-125MG
The analog HS-125MG is truly a super thin servo measuring 1.2” x 0.4” x 1.3”. Featuring Hitec’s MP Gear, the HS-125MG is very durable, and a perfect fit in the slim wings of today’s high performance gliders.
Features
- Super Thin Wing Servo
- Strong Metal Gears
- Dual Ball Bearings
- Perfectly Designed to Fit in Slim Aircraft and Glider Wings
HS-125MG Servo Specifications
| Performance Specifications | |
| Operating Voltage Range (Volts DC) | 4.8V ~ 6.0V |
| Speed (Second @ 60°) | 0.17 ~ 0.13 |
| Maximum Torque Range oz. / in. | 42 ~ 49 |
| Maximum Torque Range kg. / cm. | 3.0 ~ 3.5 |
| Current Draw at Idle | 8 mA |
| No Load Operating Current Draw | 230 mA |
| Stall Current Draw | 1,200 mA |
| Dead Band Width | 1 µs |
| Physical Specifications | |
| Dimensions (Inches) | 1.18 x 0.39 x 1.33 |
| Dimensions (Metric) | 30.0 x 10.0 x 34.0 |
| Weight (Ounces) | 0.84 |
| Weight (Gram) | 24.0 |
| Circuit Type | HT7003 Analog SMT |
| Motor Type | 3 Pole Metal Brush Ferrite |
| Gear Material | Metal |
| Bearing Type | Dual Ball Bearing |
| Output Shaft (type / Ømm) | Micro 23 |
| Case Material | Plastic |
| Dust / Water Resistance | N / A |
| Connector Gauge (AWG) / Strand Count | 25 / 40 |
| Radio Control Applications | |
| Parkflyer | N / A |
| Sport Plane | 42 - 50 oz. |
| Sailplane | 3 Meter |
| 3D Performance | 42 - 50 oz. |
| Scale | N / A |
| Electric Helicopter | N / A |
| Gas Helicopter | N / A |
| On Road | N / A |
| Monster Truck | N / A |
| Buggies | N / A |
| Truggies | N / A |
| Short Course / Truck | N / A |
| Crawlers | N / A |
| Sail Boat | N / A |
| Power Boat | 1/16th |
