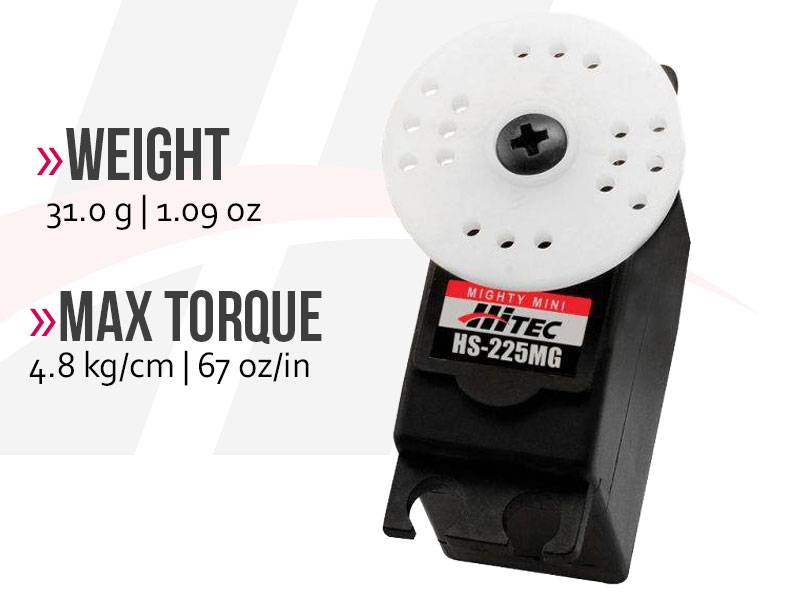

HS-225MG Metal Gear Mighty Mini Servo, Hitec
Hitec - 32225S The analog HS-225MG represents a good value with performance that rivals other larger and more expensive servos. Ideal for applications that call for a small, lightweight, high speed, high torque servo, the HS-225MG high performance mini servo features a top ball bearing and is built with state-...
Hitec - 32225S
The analog HS-225MG represents a good value with performance that rivals other larger and more expensive servos. Ideal for applications that call for a small, lightweight, high speed, high torque servo, the HS-225MG high performance mini servo features a top ball bearing and is built with state-of-the-art SMT technology.
Features
- Full Size Performance in a Mini Package
- Durable Metal Gears
- Top Ball Bearings
- Perfect for Applications Requiring a Small, Lightweight, High Speed, High Torque Servo
HS-225MG Servo Specifications
| Performance Specifications | |
| Operating Voltage Range (Volts DC) | 4.8V ~ 6.0V |
| Speed (Second @ 60°) | 0.14 ~ 0.11 |
| Maximum Torque Range oz. / in. | 54 ~ 67 |
| Maximum Torque Range kg. / cm. | 3.9 ~ 4.8 |
| Current Draw at Idle | 8 mA |
| No Load Operating Current Draw | 300 mA |
| Stall Current Draw | 1,200 mA |
| Dead Band Width | 8 µs |
| Physical Specifications | |
| Dimensions (Inches) | 1.27 x 0.66 x 1.22 |
| Dimensions (Metric) | 32.4 x 16.8 x 31.0 |
| Weight (Ounces) | 1.09 |
| Weight (Gram) | 31.0 |
| Circuit Type | HT7003 Analog SMT |
| Motor Type | 3 Pole Metal Brush Ferrite |
| Gear Material | Metal |
| Bearing Type | Top Ball Bearing |
| Output Shaft (type / Ømm) | Standard 24 |
| Case Material | Plastic |
| Dust / Water Resistance | N / A |
| Connector Gauge (AWG) / Strand Count | 25 / 40 |
| Radio Control Applications | |
| Parkflyer | N / A |
| Sport Plane | 50 - 64 oz. |
| Sailplane | 3 meter |
| 3D Performance | 50 - 64 oz. |
| Scale | N / A |
| Electric Helicopter | 500mm |
| Gas Helicopter | 50-59 Class |
| On Road | 1/12th |
| Monster Truck | N / A |
| Buggies | 1/12th |
| Truggies | N / A |
| Short Course / Truck | N / A |
| Crawlers | 1/8th |
| Sail Boat | < 1 meter |
| Power Boat | 1/16th |
- ·See product description for included items.
