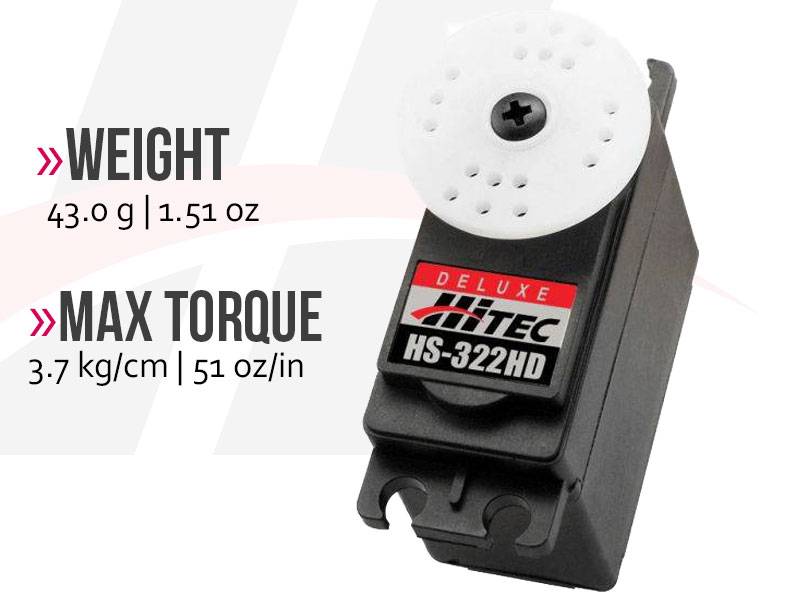

HS-322HD Standard Heavy Duty Servo, Hitec
CAT.496 · DWG 33322S SCALE 1:1 PHOTOHS-322HD Standard Heavy Duty Servo, Hitec
FIG. 1
Hitec

HS-322HD Standard Heavy Duty Servo, Hitec

33322S
$43.60incl. GST · free NZ shipping

    Hitec - 33322S The HS-322HD Standard Heavy Duty Servo utilizes Hitec’s revolutionary Karbonite™ gear train which is four times stronger than our standard white nylon gears, and even after hundreds of thousands of cycles they don’t show any signs of wear. Karbonite™ gears and our custom IC make the HS-322HD a g...

1
Click & collect →
In stock — 5 on the shelf in Christchurch
1–2 working day dispatch · tracked courier NZ-wide
Checked & test-run by Shane before it ships · 30-day returns





Hitec - 33322S

The HS-322HD Standard Heavy Duty Servo utilizes Hitec’s revolutionary Karbonite™ gear train which is four times stronger than our standard white nylon gears, and even after hundreds of thousands of cycles they don’t show any signs of wear. Karbonite™ gears and our custom IC make the HS-322HD a great choice for an economical sport servo.

  • Applications: Heli's and Aircraft up to 72" or up to 12lbs when using just one servo per control surface.
  • Note: Be aware that high vibration gas (not glow) engines combined with large control surfaces and large throws (3D models) can put undue strain on the gears. Metal geared servos are recommended for these applications, even if under 12lbs.
  • Warning: Do not use thread lockers on Karbonite geared servo as it will cause the output shaft to fail.



Features

  • Economical, Heavy Duty, Sport Servo
  • Reliable Three-Pole Ferrite Motor
  • Tough Karbonite Gears
  • Nylon Bushing-Supported Output Shaft


HS-322HD Servo Specifications

Performance Specifications
Operating Voltage Range (Volts DC) 4.8V ~ 6.0V
Speed (Second @ 60°) 0.19 ~ 0.15
Maximum Torque Range oz. / in. 42 ~ 51
Maximum Torque Range kg. / cm. 3.0 ~ 3.7
Current Draw at Idle 7.7 mA
No Load Operating Current Draw 180 mA
Stall Current Draw 800 mA
Dead Band Width 5 µs
Physical Specifications
Dimensions (Inches) 1.57 x 0.78 x 1.43
Dimensions (Metric) 40.0 x 20.0 x 36.5
Weight (Ounces) 1.51
Weight (Gram) 43.0
Circuit Type HT7003 Analog SMT
Motor Type 3 Pole Metal Brush Ferrite
Gear Material Karbonite
Bearing Type Nylon
Output Shaft (type / Ømm) Standard 24
Case Material Plastic
Dust / Water Resistance N / A
Connector Gauge (AWG) / Strand Count 25 / 40
Radio Control Applications
Parkflyer N / A
Sport Plane 50 - 64 oz.
Sailplane N / A
3D Performance N / A
Scale > 40%
Electric Helicopter N / A
Gas Helicopter N / A
On Road N / A
Monster Truck N / A
Buggies N / A
Truggies N / A
Short Course / Truck N / A
Crawlers N / A
Sail Boat < 1 meter
Power Boat 1/10th



✓ Included
