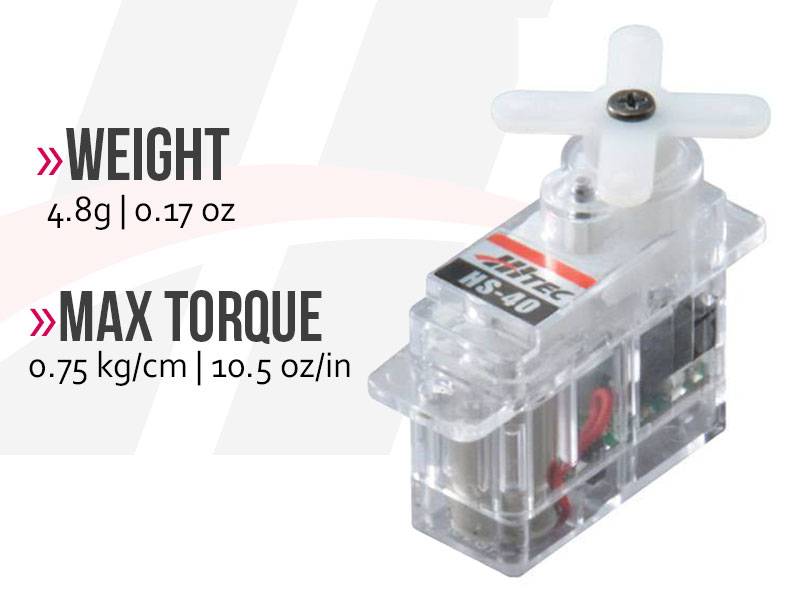

HS-40 Ecomomy Nano Servo, Hitec
CAT.896 · DWG HS-40 SCALE 1:1 PHOTOHS-40 Ecomomy Nano Servo, Hitec
FIG. 1
Hitec

HS-40 Ecomomy Nano Servo, Hitec

HS-40
$34.40incl. GST · free NZ shipping

    Hitec - 31040 Hitec's research department and engineers work tirelessly at developing economical servo technology that outperforms the competition and the new HS-40 nano analog servo delivers just that. With a three-pole cored motor and resilient nylon gears, this affordable servo is a dream come true for micr...

1
Click & collect →
In stock — 10 on the shelf in Christchurch
1–2 working day dispatch · tracked courier NZ-wide
Checked & test-run by Shane before it ships · 30-day returns





Hitec - 31040

Hitec's research department and engineers work tirelessly at developing economical servo technology that outperforms the competition and the new HS-40 nano analog servo delivers just that. With a three-pole cored motor and resilient nylon gears, this affordable servo is a dream come true for micro aircraft, sailplane and helicopter pilots. Slightly larger than the popular HS-35HD with an operating range of 4.8 to 6.0 volts, the HS-40 is a solid performer that is easy on your wallet!


Features

  • Nylon Gears
  • Three-Pole Motor
  • 4.8 & 6.0V Operation
  • Economically Priced

Accessories

  • Nylon Gear Set | Link |
  • Applicable Horns




HS-40 Servo Specifications

Performance Specifications
Operating Voltage Range (Volts DC) 4.8V ~ 6.0V
Speed (Second @ 60°) 0.12 ~ 0.10
Maximum Torque Range oz. / in. 8.4 ~ 10.5
Maximum Torque Range kg. / cm. 0.6 ~ 0.75
Current Draw at Idle 8 mA
No Load Operating Current Draw 60 mA
Stall Current Draw 460 mA
Dead Band Width 5 µs
Physical Specifications
Dimensions (Inches) 0.79 x 0.34 x 0.67
Dimensions (Metric) 20.0 x 8.6 x 17.0
Weight (Ounces) 0.17
Weight (Gram) 4.8
Circuit Type HT7003 Analog SMT
Motor Type Cored Metal Brush
Gear Material Nylon
Bearing Type None
Output Shaft (type / Ømm) Feather 15 / 8
Case Material Plastic
Dust / Water Resistance N / A
Connector Gauge (AWG) / Strand Count 28 / 20
Radio Control Applications
Parkflyer N / A
Sport Plane < 20 oz
Sailplane Mini / Park Flyer
3D Performance Foamie
Scale N / A
Electric Helicopter 125mm
Gas Helicopter N / A
On Road N / A
Monster Truck N / A
Buggies N / A
Truggies N / A
Short Course / Truck N / A
Crawlers N / A
Sail Boat N / A
Power Boat N / A



✓ Included
  • ·See product description for included items.
