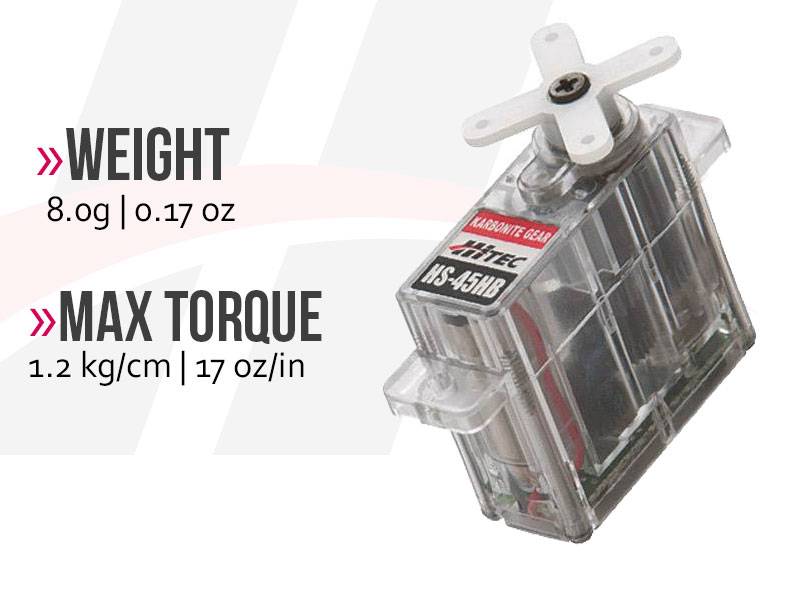

HS-45HB AGTT Premium Feather Servo, Hitec
CAT.592 · DWG 33045S SCALE 1:1 PHOTOHS-45HB AGTT Premium Feather Servo, Hitec
FIG. 1
Hitec

HS-45HB AGTT Premium Feather Servo, Hitec

33045S
$42.70incl. GST · free NZ shipping

      Hitec - 33045S Hitec’s HS-45HB offers the economy and durability of our other famous micro servos, but now with a ball bearing supported output shaft and Karbonite gears.  HS-45HB Servo Specifications Performance Specifications Operating Voltage Range (Volts DC) 4.8V ~ 6.0V Speed (Second @ 60°) 0.14 ...

1
Click & collect →
In stock — 4 on the shelf in Christchurch
1–2 working day dispatch · tracked courier NZ-wide
Checked & test-run by Shane before it ships · 30-day returns







Hitec - 33045S

Hitec’s HS-45HB offers the economy and durability of our other famous micro servos, but now with a ball bearing supported output shaft and Karbonite gears.



HS-45HB Servo Specifications

Performance Specifications
Operating Voltage Range (Volts DC) 4.8V ~ 6.0V
Speed (Second @ 60°) 0.14 ~ 0.12
Maximum Torque Range oz. / in. 14 ~ 17
Maximum Torque Range kg. / cm. 1.0 ~ 1.2
Current Draw at Idle 8 mA
No Load Operating Current Draw 100 mA
Stall Current Draw 440 mA
Dead Band Width 5 µs
Physical Specifications
Dimensions (Inches) 0.92 x 0.38 x 0.88
Dimensions (Metric) 23.6 x 9.8 x 22.4
Weight (Ounces) 0.28
Weight (Gram) 8.0
Circuit Type HT7003 Analog SMT
Motor Type Cored Metal Brush
Gear Material Karbonite
Bearing Type Top Ball Bearing
Output Shaft (type / Ømm) Feather 15 / 8
Case Material Plastic
Dust / Water Resistance N / A
Connector Gauge (AWG) / Strand Count 28 / 20
Radio Control Applications
Parkflyer < 36 oz.
Sport Plane 20 - 35 oz.
Sailplane Foamie
3D Performance N / A
Scale 200mm
Electric Helicopter N / A
Gas Helicopter N / A
On Road N / A
Monster Truck N / A
Buggies N / A
Truggies N / A
Short Course / Truck N / A
Crawlers N / A
Sail Boat N / A
Power Boat N / A



✓ Included
  • ·See product description for included items.
