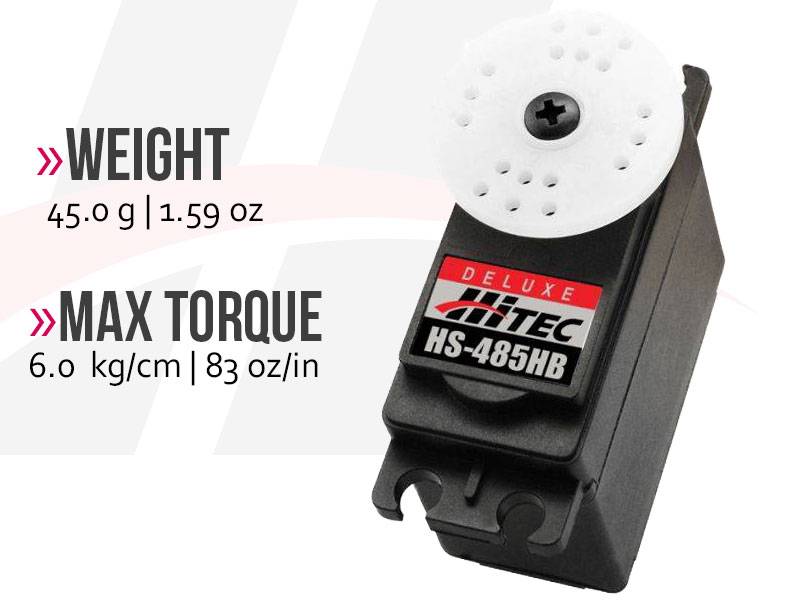

HS-485HB Deluxe HD Ball Bearing Standard Servo
CAT.856 · DWG 33485S SCALE 1:1 PHOTOHS-485HB Deluxe HD Ball Bearing Standard Servo
FIG. 1
Hitec

HS-485HB Deluxe HD Ball Bearing Standard Servo

33485S
$57.40incl. GST · free NZ shipping

The HS-485HB updates the very popular HS-475HB by adding more torque and greater speed. With its top ball bearing, heavy duty, high impact Karbonite™ gears and high performance circuitry, the HS-485HB offers lots of torque and features excellent centering and resolution. Applications: Heli's and Aircraft up to 7...

1
Click & collect →
In stock — 6 on the shelf in Christchurch
1–2 working day dispatch · tracked courier NZ-wide
Checked & test-run by Shane before it ships · 30-day returns

The HS-485HB updates the very popular HS-475HB by adding more torque and greater speed. With its top ball bearing, heavy duty, high impact Karbonite™ gears and high performance circuitry, the HS-485HB offers lots of torque and features excellent centering and resolution.

  • Applications: Heli's and Aircraft up to 72” or up to 12lbs when using just one servo per control surface.
  • Note: Be aware that high vibration gas (not glow) engines combined with large contol surfaces and large thows (3D models) can put undue strain on the gears. Metal geared servos are recommended for these applications even if under 12lbs.
  • Warning: Do not use thread lockers on Karbonite geared servo as it will cause the output shaft to fail.



Features

  • Top Selling Heavy Duty Standard Servo
  • High Impact Karbonite Gears
  • Top Ball Bearings
  • Excellent Centering and Resolution


HS-485HB Servo Specifications

Performance Specifications
Operating Voltage Range (Volts DC) 4.8V ~ 6.0V
Speed (Second @ 60°) 0.22 ~ 0.18
Maximum Torque Range oz. / in. 67 ~ 83
Maximum Torque Range kg. / cm. 4.8 ~ 6.0
Current Draw at Idle 10 mA
No Load Operating Current Draw 200 mA
Stall Current Draw 1,200 mA
Dead Band Width 3 µs
Physical Specifications
Dimensions (Inches) 1.57 x 0.78 x 1.49
Dimensions (Metric) 39.8 x 19.8 x 38.0
Weight (Ounces) 1.59
Weight (Gram) 45.0
Circuit Type HT7003 Analog SMT
Motor Type 3 Pole Metal Brush Ferrite
Gear Material Karbonite
Bearing Type Top Ball Bearing
Output Shaft (type / Ømm) Standard 24
Case Material Plastic
Dust / Water Resistance N / A
Connector Gauge (AWG) / Strand Count 25 / 40
Radio Control Applications
Parkflyer N / A
Sport Plane 50 - 64 oz.
Sailplane 2 meters and up
3D Performance N / A
Scale 50 - 64 oz.
Electric Helicopter N / A
Gas Helicopter N / A
On Road N / A
Monster Truck N / A
Buggies N / A
Truggies N / A
Short Course / Truck N / A
Crawlers N / A
Sail Boat < 1 meter
Power Boat 1/10th
