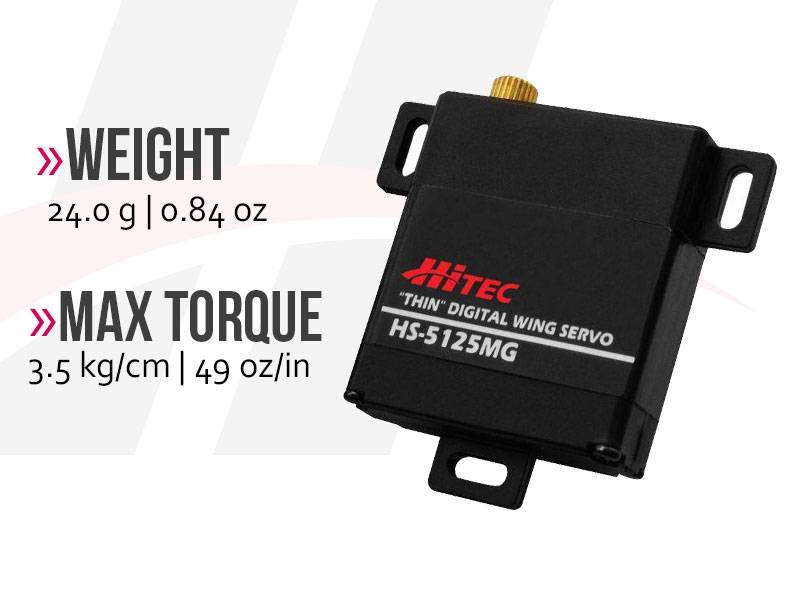

HS-5125MG Slim Metal Gear Wing Servo, Hitec
CAT.928 · DWG 35125S SCALE 1:1 PHOTOHS-5125MG Slim Metal Gear Wing Servo, Hitec
FIG. 1
Hitec

HS-5125MG Slim Metal Gear Wing Servo, Hitec

35125S
$83.70$104.60incl. GST · free NZ shipping

  ONLY 1 AVAILABLE AT THIS CLEARANCE PRICE   Hitec - 35125S At 10mm thick, the Hitec HS-5125MG servo is a great choice for a super thin wing servo. Featuring a digital programmable circuit providing instant torque and holding power, Hitec’s HS-5125MG also uses our reliable M/P gear and metal gear train technology ...

1
Click & collect →
In stock — 1 on the shelf in Christchurch
1–2 working day dispatch · tracked courier NZ-wide
Checked & test-run by Shane before it ships · 30-day returns



ONLY 1 AVAILABLE AT THIS CLEARANCE PRICE



Hitec - 35125S

At 10mm thick, the Hitec HS-5125MG servo is a great choice for a super thin wing servo. Featuring a digital programmable circuit providing instant torque and holding power, Hitec’s HS-5125MG also uses our reliable M/P gear and metal gear train technology for super durability.



Features

  • Super Thin Programmable Digital Wing Servo
  • Strong Metal Gears
  • Dual Ball Bearings
  • Standard Programmable Digital Circuit for Greater Holding Power
  • 10mm Design Fits Perfectly in Slim Aircraft and Glider Wings

Programmable Functions

  • End Point Adjustments
  • Direction
  • Fail Safe
  • Dead Band
  • Speed (Slower)
  • Data Save / Load
  • Program Reset


HS-5125MG Servo Specifications

Performance Specifications
Operating Voltage Range (Volts DC) 4.8V ~ 6.0V
Speed (Second @ 60°) 0.17 ~ 0.13
Maximum Torque Range oz. / in. 42 ~ 49
Maximum Torque Range kg. / cm. 3.0 ~ 3.5
Current Draw at Idle 3 mA
No Load Operating Current Draw 230 mA
Stall Current Draw 1,200 mA
Dead Band Width 1 µs
Physical Specifications
Dimensions (Inches) 1.18 x 0.39 x 1.33
Dimensions (Metric) 30.0 x 10.0 x 34.0
Weight (Ounces) 0.84
Weight (Gram) 24.0
Circuit Type G1 Programable Digital
Motor Type 3 Pole Metal Brush Ferrite
Gear Material Nylon
Bearing Type Dual Ball Bearing
Output Shaft (type / Ømm) Micro 23
Case Material Plastic
Dust / Water Resistance N / A
Connector Gauge (AWG) / Strand Count 25 / 40
Radio Control Applications
Parkflyer N / A
Sport Plane 42 - 50 oz.
Sailplane 3 meter
3D Performance 42 - 50 oz.
Scale N / A
Electric Helicopter N / A
Gas Helicopter N / A
On Road N / A
Monster Truck N / A
Buggies N / A
Truggies N / A
Short Course / Truck N / A
Crawlers N / A
Sail Boat N / A
Power Boat 1/16th
