Hitec - 31053

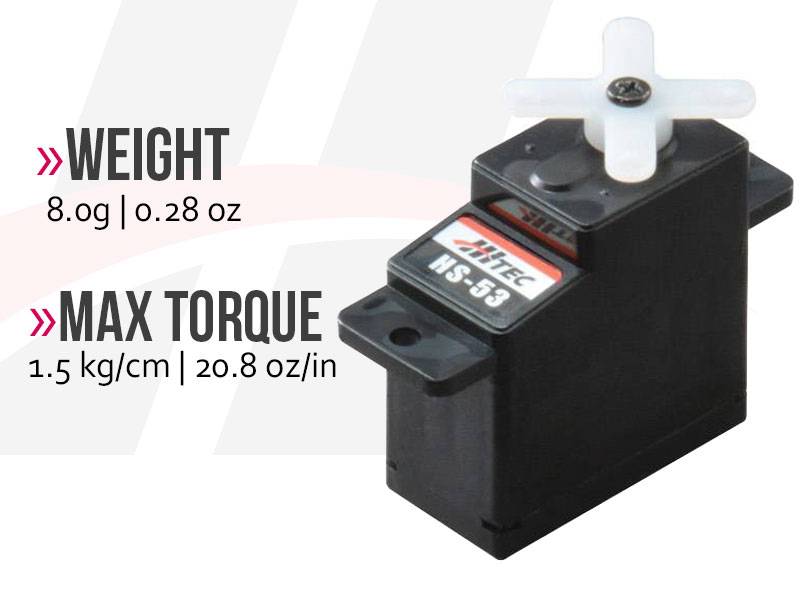

The HS-53 is our economical, feather servo designed to compete head to head with the influx of low cost servos while still maintaining Hitec’s renowned quality. Designed with a durable nylon gear train and an efficient three-pole cored motor, this light-weight servo is a terrific fit for small power planes and gliders. Priced right, it is sure to become a universal favorite!
Features
- Durable Nylon Gears
- Three-Pole Cored Motor
- Feather-Weight
- Economically Priced
HS-53 Servo Specifications
| Performance Specifications | |
| Operating Voltage Range (Volts DC) | 4.8V ~ 6.0V |
| Speed (Second @ 60°) | 0.16 ~ 0.13 |
| Maximum Torque Range oz. / in. | 16.7 ~ 20.8 |
| Maximum Torque Range kg. / cm. | 1.2 ~ 1.5 |
| Current Draw at Idle | 10 mA |
| No Load Operating Current Draw | 125 mA |
| Stall Current Draw | 550 mA |
| Dead Band Width | 5 µs |
| Physical Specifications | |
| Dimensions (Inches) | 1.12 x 0.46 x 0.95 |
| Dimensions (Metric) | 28.6 x 11.6 x 24.1 |
| Weight (Ounces) | 0.28 |
| Weight (Gram) | 8.0 |
| Circuit Type | HT7003 Analog SMT |
| Motor Type | Cored Metal Brush |
| Gear Material | Nylon |
| Bearing Type | None |
| Output Shaft (type / Ømm) | Feather 15 / 8 |
| Case Material | Plastic |
| Dust / Water Resistance | N / A |
| Connector Gauge (AWG) / Strand Count | 28 / 20 |
| Radio Control Applications | |
| Parkflyer | N / A |
| Sport Plane | 20 - 35 oz. |
| Sailplane | <2 meter / DLG |
| 3D Performance | N / A |
| Scale | N / A |
| Electric Helicopter | 200mm |
| Gas Helicopter | N / A |
| On Road | N / A |
| Monster Truck | N / A |
| Buggies | N / A |
| Truggies | N / A |
| Short Course / Truck | N / A |
| Crawlers | N / A |
| Sail Boat | = >1 meter & Scale |
| Power Boat | N / A |
