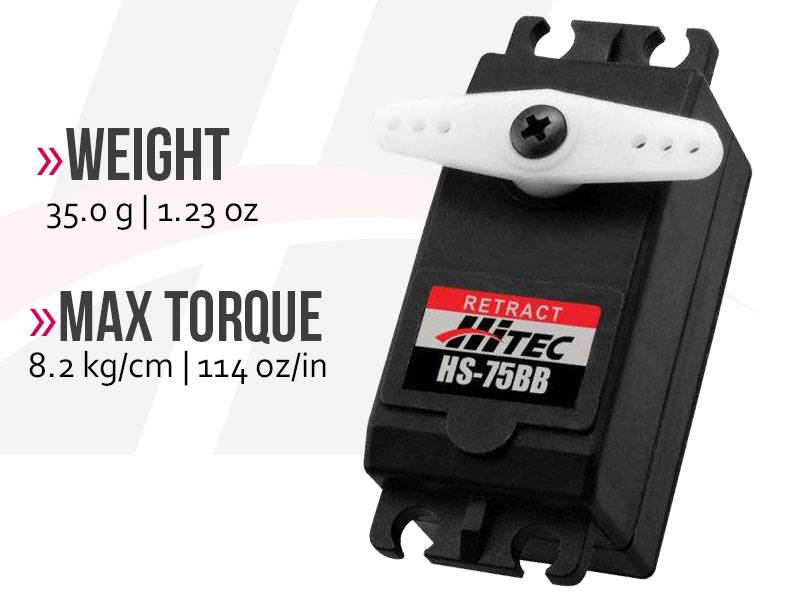

HS-75BB Retract Servo, Hitec
Hitec - 31075S With its low profile design, strong torque and precision movement, the HS-75BB is a great choice to move your retract gear in a realistic manner that you need. Note, this is a retract or “bang bang” servo and only travels from one end to the other (180 degrees). If you require a proportional serv...
Hitec - 31075S
With its low profile design, strong torque and precision movement, the HS-75BB is a great choice to move your retract gear in a realistic manner that you need. Note, this is a retract or “bang bang” servo and only travels from one end to the other (180 degrees). If you require a proportional servo this size, use the Hitec HS-77BB.
Features
- Low Profile Design
- Durable Nylon Gears
- Top Ball Bearings
- Strong Torque and Precise Movement
- Slow Speed for Realistic Retract Action
HS-75BB Servo Specifications
| Performance Specifications | |
| Operating Voltage Range (Volts DC) | 4.8V ~ 6.0V |
| Speed (Second @ 60°) | 0.45 ~ 0.34 |
| Maximum Torque Range oz. / in. | 92 ~ 114 |
| Maximum Torque Range kg. / cm. | 6.6 ~ 8.2 |
| Current Draw at Idle | 1 mA |
| No Load Operating Current Draw | 150 mA |
| Stall Current Draw | 1,000 mA |
| Dead Band Width | 20 µs |
| Physical Specifications | |
| Dimensions (Inches) | 1.73 x 0.90 x 0.98 |
| Dimensions (Metric) | 44.0 x 23.0 x 25.0 |
| Weight (Ounces) | 1.23 |
| Weight (Gram) | 35.0 |
| Circuit Type | HT7003 Analog SMT |
| Motor Type | 3 Pole Metal Brush Ferrite |
| Gear Material | Nylon |
| Bearing Type | Top Ball Bearing |
| Output Shaft (type / Ømm) | Standard 24 |
| Case Material | Plastic |
| Dust / Water Resistance | Splash Proof |
| Connector Gauge (AWG) / Strand Count | 25 / 40 |
- ·See product description for included items.
