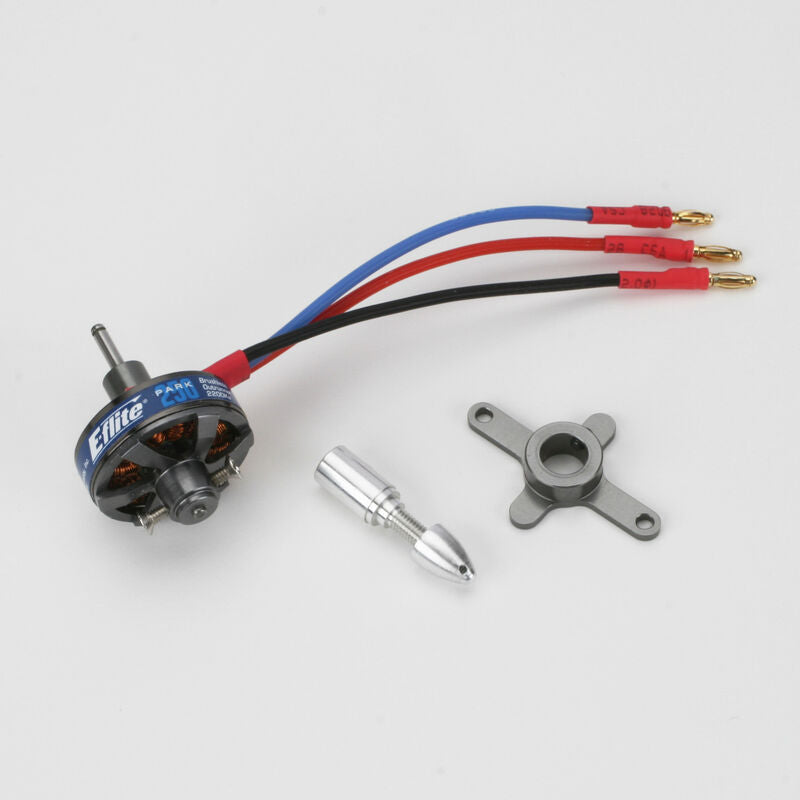

Park 250 Brushless Outrunner Motor Set, 2200Kv, E-flite
CAT.600 · DWG EFLM1130 SCALE 1:1 PHOTOPark 250 Brushless Outrunner Motor Set, 2200Kv, E-flite
FIG. 1
E-flite

Park 250 Brushless Outrunner Motor Set, 2200Kv, E-flite

EFLM1130
$80.70incl. GST · free NZ shipping

    E-flite - EFLM1130   Ideal power system for those K-Mart glider / airplane builds. The Park 250 Brushless Outrunner Motor is ideal for 3D models 4–6 oz (115–170 g) and sport and scale models 6–12 oz (170–340 g), or models requiring up to 55 watts of power. Pair perfectly with a 12A ESC, click here to find ...

1
Click & collect →
In stock — 1 on the shelf in Christchurch
1–2 working day dispatch · tracked courier NZ-wide
Checked & test-run by Shane before it ships · 30-day returns





E-flite - EFLM1130



Ideal power system for those K-Mart glider / airplane builds.


The Park 250 Brushless Outrunner Motor is ideal for 3D models 4–6 oz (115–170 g) and sport and scale models 6–12 oz (170–340 g), or models requiring up to 55 watts of power.
Pair perfectly with a 12A ESC, click here to find ours
https://flightrc.co.nz/collections/electronics/products/12a-brushless-esc-hornet

  • Designed for firewall mount or carbon tube mount
  • Integrated prop saver design
  • Extremely quiet and lightweight—just .5 ounces (14 grams)
  • Upgraded performance motor for indoor IPS and 180 motors
  • High-torque, direct-drive alternative to inrunners
  • High-quality construction with ball bearings and hardened steel shaft
  • Great lightweight outrunner for small indoor foamies



Specs

Motor Type                                      Brushless
Motor Design                                   Outrunner
Cells                                                 2S LiPo
Continuous Current                         7A
Max Burst Current                           8A (15 sec)
Recommended Prop Range              5.5 x 4.5 - 8 x 6 SF
Resistance                                        .25 ohms
Bushing Or Bearing                          Bearing
Connector Type                                2mm Bullet
Adjustable Timing                             No
Voltage                                            6 - 8.4V
Idle Current (Io)                               .45A
RPM/Volt (Kv)                                  2200
Shaft Outer Diameter                       0.85 in (2mm)
Diameter                                          22mm
Case Length                                     23mm
Weight                                             14gms
✓ Included
  • ·See product description for included items.
