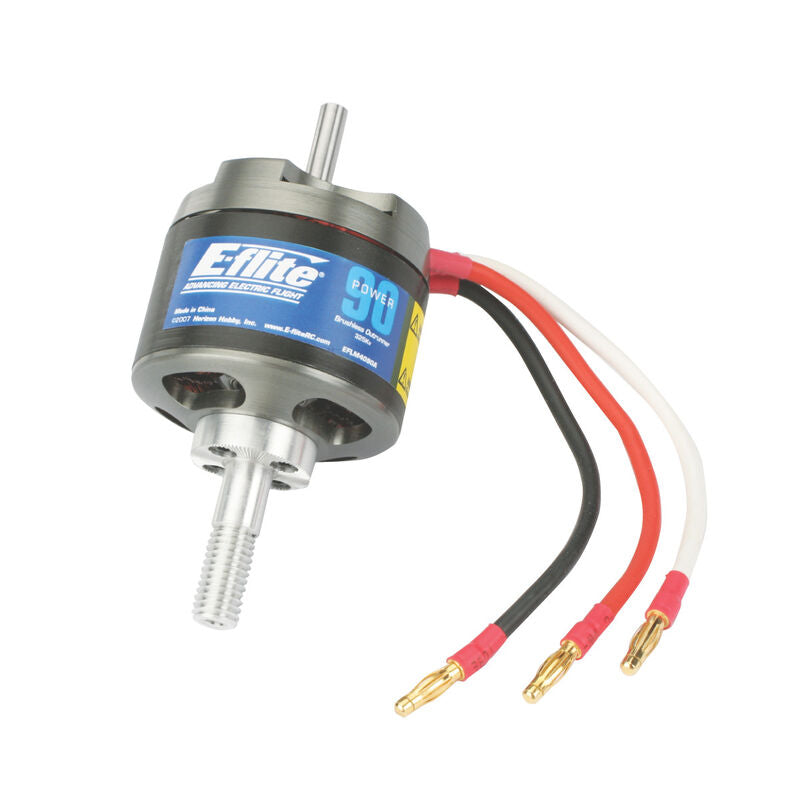

Power 90 Brushless Outrunner Motor Set, 325Kv, E-flite
CAT.40 · DWG EFLM4090A SCALE 1:1 PHOTOPower 90 Brushless Outrunner Motor Set, 325Kv, E-flite
FIG. 1
E-flite

Power 90 Brushless Outrunner Motor Set, 325Kv, E-flite

EFLM4090A
$312.50incl. GST · free NZ shipping

    E-flite - EFLM4090A Designed to deliver clean and quiet power equivalent to or surpassing the power of a 90-size 2-stroke glow engine for sport and scale airplanes weighing 8 to 13 pounds (3.6 to 5.9 kg), 3D airplanes up to 10 pounds (4.5 kg), or models requiring up to 1800 watts of power. It will provide excel...

1
Click & collect →
In stock — 2 on the shelf in Christchurch
1–2 working day dispatch · tracked courier NZ-wide
Checked & test-run by Shane before it ships · 30-day returns





E-flite - EFLM4090A

Designed to deliver clean and quiet power equivalent to or surpassing the power of a 90-size 2-stroke glow engine for sport and scale airplanes weighing 8 to 13 pounds (3.6 to 5.9 kg), 3D airplanes up to 10 pounds (4.5 kg), or models requiring up to 1800 watts of power. It will provide excellent 3D performance for the Hangar 9 Frenzy 100 ARF, ShowTime 4D 90 ARF, Funtana X 100 ARF and other similar class models. The Power 90 also provides great power and performance for the Seagull Ultimate Bi-Plane 90 ARFs.



Features

  • Equivalent to or surpassing the power of a 90-size, 2-stroke, glow engine for sport and scale airplanes weighing 8 to 13 lb (3.6 to 5.9 kg)
  • Ideal for 3D airplanes weighing up to 10 lb (4.5 kg)
  • Ideal for models requiring up to 1800 watts of power
  • High torque, direct drive alternative to inrunner brushless motors
  • External rotor design for better cooling
  • High-quality construction with ball bearings and hardened 6mm steel shaft
  • Includes mount and mounting hardware with two 10mm prop shaft adapters tapped out for 8-32 threads
  • Slotted 14-pole outrunner design


Needed To Complete

6S–8S Li-Po or 18-26 Ni-MH /Ni-Cd
16x8 to 18x8 electric props
85A High Voltage Brushless ESC


Product Specifications

Idle Current (Io) 2.00A @ 10V
RPM/Volt (Kv) 325Kv
Outer Diameter 2.20 in (56mm)
Bushing Or Bearing Bearing
Wire Gauge 13 AWG
Motor Design Outrunner
Connector Type 4mm Bullet
Motor Type Brushless - Outrunner
Adjustable Timing Yes
Voltage 21.6–31.2V
Recommended Prop Range 16x8 to 18x8
Resistance 02 ohms
Shaft Diameter 6mm (.24 in) (Includes two 10mm threaded prop shaft adapters with 1.5 pitch)
✓ Included
  • ·See product description for included items.
+ Required to complete
    Shane keeps the right packs and receivers on the shelf — ask if you're unsure.

    Assembly notes coming soon — ask Shane if you need a hand before your first flight.
