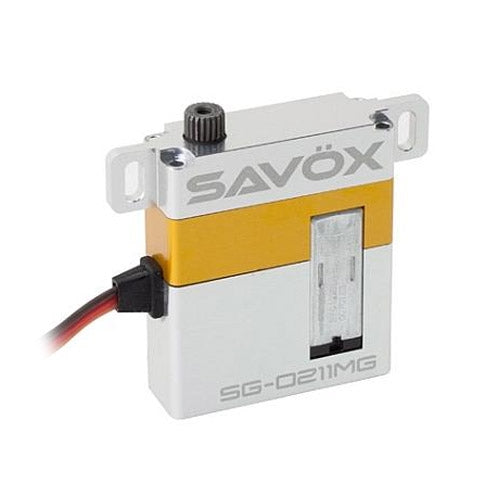

Savox - SG0211MG
The SG-0211MG is specifically designed for glider and sailplane applications. With its unique case design, it is meant to be mounted in the slim specifications of wings.
Features:
- Metal Gear train for extended life and durability.
- Special design for glider applications.
- Special design for glider applications.
- All aluminum case for secure mounting.
Specifications:
- Torque @4.8v - 6.0kg/83.3oz-in
- Torque @6v - 8.0kg/111.1oz-in
- Speed @4.8v - 0.16 sec/60 deg
- Speed @6v - 0.13 sec/60 deg
- Dimensions L x W x H (mm): 30.0 x 10.0 x 36.0
- Weight: 29g
Technical Details:
- Operating Temperature: 14° - 122°F (-10° - 50°C)
- Running Current (no load): 120mA @4.8V, 180mA @6.0V
- Stall Current (at locked): 1500mA @4.8 V, 1900mA @6.0V
- Idle Current: 5mA @4.8V, 5mA @6.0V
- Wire Length: 250 ± 5mm
- Output Gear Spline: 21 Tooth
- Bearings: 2BB
- Operating Travel: 100° (1000 → 2000 µ second)
- Neutral Position: 1500 µ second
- Pulse Width Range: 800 → 2200 µ second
- Maximum Travel: Appx 165° (800 → 2200 µ second)
- Refresh Rate: 240 Hz
- Motor Type: Brushed
