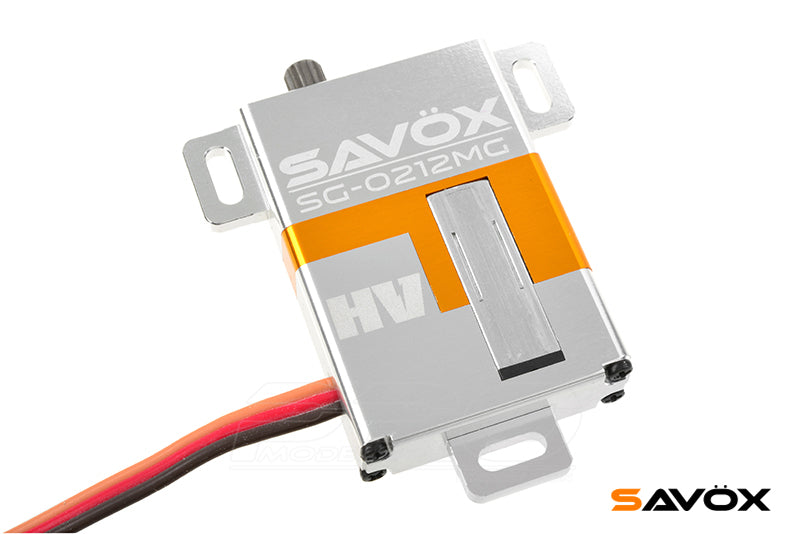

6.0kg @ 8.4V Thin Wing, Digital, HV, Metal Gear Servo, Savox SG-0212MG
CAT.120 · DWG SG-0212MG SCALE 1:1 PHOTO6.0kg @ 8.4V Thin Wing, Digital, HV, Metal Gear Servo, Savox SG-0212MG
FIG. 1
Savox

6.0kg @ 8.4V Thin Wing, Digital, HV, Metal Gear Servo, Savox SG-0212MG

SG-0212MG
$91.40incl. GST · free NZ shipping

      Savox - SG-0212MG The SG-0212MG combines leading edge technology with super high 12 bit (4096) resolution. It is specifically designed for glider and sailplane applications. With its unique case design, it is meant to be mounted in the slim specifications of wings.   Features: Metal Gear train for extended l...

1
Click & collect →
In stock — 6 on the shelf in Christchurch
1–2 working day dispatch · tracked courier NZ-wide
Checked & test-run by Shane before it ships · 30-day returns







Savox - SG-0212MG

The SG-0212MG combines leading edge technology with super high 12 bit (4096) resolution. It is specifically designed for glider and sailplane applications. With its unique case design, it is meant to be mounted in the slim specifications of wings.



Features:

  • Metal Gear train for extended life and durability.
  • Special design for glider applications.
  • All aluminum case for secure mounting.
  • Rated up to 8.4V for the best performance and compatibility.



Specifications:

  • Torque @ 7.4V - 5.0kg / 69.4oz-in
  • Speed @ 7.4V - 0.10 sec / 60 deg
  • Torque @ 8.4V - 6.0kg / 83.3oz-in
  • Speed @ 8.4V - 0.09 sec / 60 deg
  • Dimensions L x W x H mm: 26.0x8.0x37.5
  • Weight: 22g



Technical Details:

  • Operating Temperature: 14° - 122°F (-10° - 50°C)
  • Running Current (no load): 120mA @4.8V, 180mA @6.0V
  • Stall Current (at locked): 1100mA @4.8 V, 1300mA @6.0V
  • Idle Current: 5mA @4.8V, 5mA @6.0V
  • Wire Length: 250 ± 5mm
  • Output Gear Spline: 21 Tooth
  • Bearings: 2BB
  • Operating Travel: 100° (1000 → 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 800 → 2200 µ second
  • Maximum Travel: Appx 165° (800 → 2200 µ second)
  • Refresh Rate: 240 Hz
  • Motor Type: Brushed
✓ Included
  • ·See product description for included items.
+ Required to complete
    Shane keeps the right packs and receivers on the shelf — ask if you're unsure.

    Assembly notes coming soon — ask Shane if you need a hand before your first flight.
