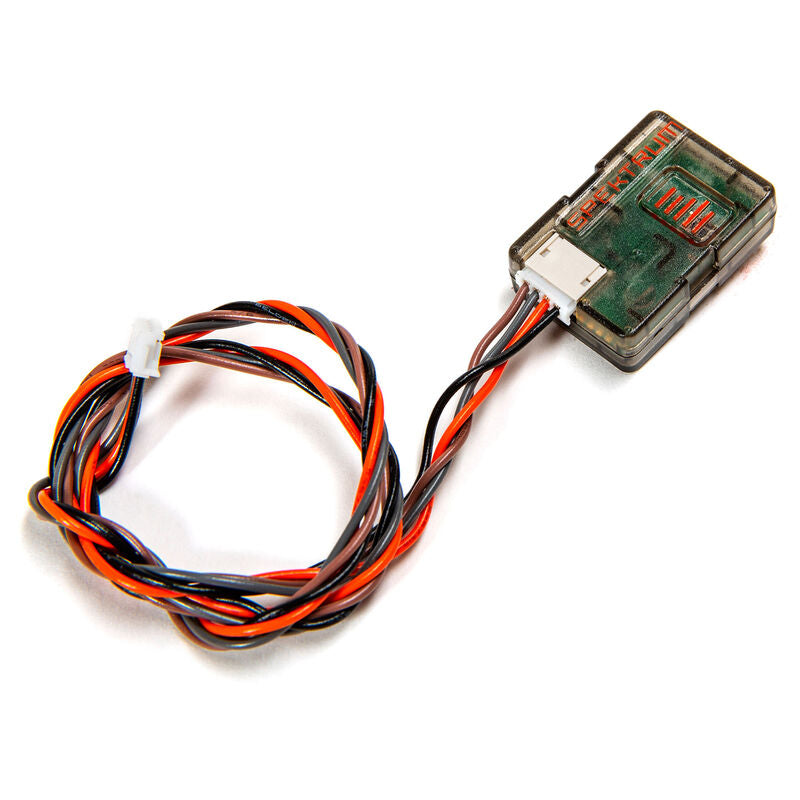

SRXL2 DSMX Remote RX, Spektrum
CAT.8 · DWG SPM9747 SCALE 1:1 PHOTOSRXL2 DSMX Remote RX, Spektrum
FIG. 1
Spektrum

SRXL2 DSMX Remote RX, Spektrum

SPM9747
$88.80incl. GST · free NZ shipping

        Spektrum - SPM9747 The Spektrum SPM9747 DSMX SRXL2 Remote Receiver is used to provide additional path diversity using Spektrum’s patented MultiLink technology to avoid reflected signal fading and polarization blind spots at long range from the transmitter. The Spektrum SPM9747 SRXL2 is compatible wit...

1
Click & collect →
In stock — 2 on the shelf in Christchurch
1–2 working day dispatch · tracked courier NZ-wide
Checked & test-run by Shane before it ships · 30-day returns









Spektrum - SPM9747

The Spektrum SPM9747 DSMX SRXL2 Remote Receiver is used to provide additional path diversity using Spektrum’s patented MultiLink technology to avoid reflected signal fading and polarization blind spots at long range from the transmitter. The Spektrum SPM9747 SRXL2 is compatible with all receivers that utilize SRXL2 remote receivers (4-pin connector). It features an integrated antenna design inside the case to provide easy installation and worry free performance.


Features

  • SRXL2 Technology
  • Integrated antenna design for easy installation
  • DSMX and DSM2 compatible
  • Lightweight
  • 22ms and 11ms Compatible
  • Includes 12 inch extension (other lengths are available)

SRXL2 Technology

SRXL2 is a powerful bi-directional communications protocol that improves the speed, security, and richness of data transfer between your radio system and compatible on-board devices such as flight controllers and Smart ESCs. You’ll also enjoy more responsive telemetry that can be customized precisely to your needs. Want to learn more about SRXL2? Visit the SRXL2 Homepage.



Integrated Antenna Design

The SPM9747 DSMX SRXL2 Remote Receiver features an integrated antenna design that allows for quick and easy installation and eliminates concern for damaging wire antennas.

Note: The SPM9747 DSMX SRXL2 Remote Receiver is not compatible with receivers that use 3-wire remote receivers. The main receiver unit must be compatible with a 4-wire SRXL2 remote receiver. The SPM9747 is only compatible with receivers that feature SRXL2 such as the AR637T and AR6610T receivers.



Product Specifications

Data Port No
Integrated Variometer No
Telemetry Integrated
Forward Programming No
Product Length 1" (25.4mm)
Rev Limiter No
Product Width 0.71" (18.11mm)
Remote Receiver Ports 0
Technology Standard
Bind Method Bind Button
Range Full
Telemetry Range Full
Failsafe Yes
Application Air
Programmable No
Product Weight 0.1oz (3g)
Input Voltage 3.3 - 8.4V
Product Height 0.30" (7.52mm)
Product Application Air
Band 2.4GHz
Serial Out SRXL2






✓ Included
  • ·See product description for included items.
